MOD 102/VAPORETTA
Vaporizing and aspirating ironing plane with and without a group of irons

Available versions:
1. Autonomous with built-in electric boiler Kw 9-12-15-18.
2. Planned for the connection to a centralized vapor source.
Dimension of the vaporizing plane on customer’s demand from cm. 60 x 80 to cm. 200 x 100. (standard dimension cm. 180 x 90).
Overall dimensions: cm 180x120x112h
All-up weight: kg 340 (version with built-in boiler).

Click for zoom
Pagnini & C. Srl
Click for zoom
Pagnini & C. Srl
Click for zoom
Pagnini & C. Srl
Click for zoom
Pagnini & C. Srl

MOD 105/P
Automatic ironing press with upper plate’s pneumatic closure and timers for the regulation of pressing and suction times
Click for zoom
Pagnini & C. Srl

Available versions:
1. Autonomous with built-in electric boiler Kw 9-12-15-18
2. Planned for the connection to a centralized vapor source.
Dimension of the ironing planes: cm 180x90
Overall dimensions: cm 180x120x112h
All versions of the Mod. 105/P can be equipped with a third timer for the automatic vaporization.
All-up weight: kg 450 (version with built-in boiler).

MOD. RAI/202
Ironing machine
Click for zoom
Click for zoom
Pagnini & C. Srl

Automatic ironing press with adjustments, times and functions though an electronic system with digital keyboard and PLC;
Immediate vaporization and strong aspiration;
Adjustable tape’s speed;
Possibility to work automatically or semi automatically;
Platform for aspiration;
Platform for tape’s start;
6 laser spotlights;
Ironed pieces’ counting;
Table’s automatic return with ironed knitwear;

MOD 107/L2
Click for zoom
Pagnini & C. Srl

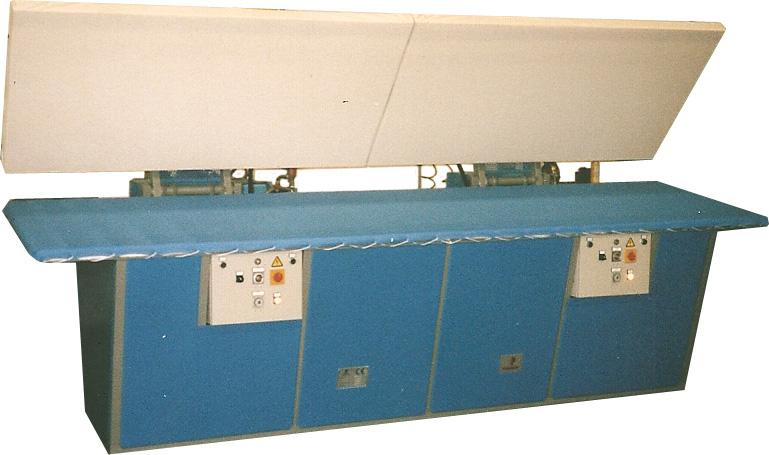

Double plate machine for dry-ironing of sheets and tablecloths.
Measures of the single bottom plate cm. 360 x 90.
Measures of the two upper plates cm. 180 x 90.
Independent planes’ closure.

PRESS HOFFMAN - MOD 106/PRT
Computerized machine for fabrics’ shrinkage tests
Click for zoom
Pagnini & C. Srl

Memorized testing schedules according to the laws DIN, ISO, JIS
Windows for the configuration and memorization of personalized testing schedules.
Machine planned for the connection to a centralized vapor system (5 BAR)
Vaporizing worktops from 80 x 60 cm, aspirating bottom plate.
Built-in electro aspirator.
N.B: The machine can be equipped with an independent electric steam generator  (15 or 18 KW) if there is not the possibility to connect it to a centralized vapor system.



MOD 104/VAP/PRT
Semiautomatic for tissue vaporization and evidence collection. Simplified version without the upper deck.
Click for zoom
Pagnini & C. Srl


Size of the vaporizing plane 60 x 80 cm (or on customer’s demand), timers to set up vaporization and suction’s times in sequence, button for cycle’s start.
Machine planned for the connection to a centralized vapor source (5 BAR)
The machine can be provided as an autonomous version with a built-in automatic electric boiler

PRINTING MACHINE AUTOMATIC - PNEUMATIC MOD. PL 100
Click for zoom
Pagnini & C. Srl Mod PL 100
Click for zoom
Pagnini & C. Srl Mod PL 100
Printing machine with worktop cm. 100 x 90 dual undercarriage with pneumatic displacement. Suitable for sublimation printing large format. Electrical load reduced to only Kw. 6.5 - Volts. 380/3f.

Plate temperature adjustable up to 220 ° C. Timer for pressing and pressure regulation.
PRINTING MACHINE AUTOMATIC - PNEUMATIC MOD. PL 120
Click for zoom
Pagnini & C. Srl Mod PL 100
Click for zoom
Pagnini & C. Srl Mod PL 100
Printing machine with worktop cm. 120 x 90 dual carriage less rigid planes with pneumatic displacement. Suitable for sublimation printing large format.

Electrical load reduced to Kw. 7.2 - Volts. 380/3f. Plate temperature adjustable up to 220 ° C. Timer for pressing and pressure regulation.


MOD. P-70
Printing machine
Click for zoom
Pagnini & C. Srl
Click for zoom
Pagnini & C. Srl

Printing machine, termoincollaggio, applications, and hot forming for skin. Worktops cm. 60x70 - upper and lower heating independently temperature controlled by digital temperature control up to 200 ° C. Pressing time adjustable by the timer. Operation with pneumatic piston diam. 200 mm (adjustable pressure up to 6 Kg. Framework in cm). Lateral displacement of the lower level of tire recycling guides with roller bearings. The plans are suitable for the insertion of molds and countermoulds. Power consumption: 3 Kw. each floor. Volt. 380 / 3f.

MOD. PRESSA O/C
Hydraulic Press.
Click for zoom
Pagnini & C. Srl
Click for zoom
Pagnini & C. Srl

High-pressure machine with 200 x 100 cm (or on request) tops.
Electrically heated upper shelf (15 Kw Volt. 380/3f+N+T).
Temperature, pressing time and pressure regulation settings.
(Press suitable for printing, thermo-gluing, thermo-adhesive, paper processing).

Mod. ELEGANT
Dry ironing press.
Click for zoom
Pagnini & C. Srl
Click for zoom
Pagnini & C. Srl

Continuous dry press for ironing sheets and tablecloths.
Automatic and manual belt movement.
Temperature controller for setting the upper deck temperature.
Timer for pressing time.
Floor size: cm. 210 x 90
Consumption: 13.5 Kw
Volt. 380/3f+N+E

MOD 108
Machine for thermofusion
Click for zoom
Pagnini & C. Srl
Click for zoom
Pagnini & C. Srl
Board Size : 120 x 70 Board Size : 120 x 50

Automatic machine that exerts a strong pressure for thermofusion, application of adhesives and hot-working.

Dimension of the worktops: 70x120 cm
Upper plate electrically heated up with an electronic regulation of the temperature (up to 200°C).
Timed pressing time.

Overall dimensions: cm 120x110x110h (with closed plane)
The machine can be also provided with planes that measure 50x120 cm.

MOD 109
Machine for leathers and furs’ vaporization from the top
Click for zoom
Pagnini & C. Srl
Upper plate that measures cm. 110 x 150 with a vapor bag that vaporizes equally and an aspirating bottom plate adjustable for height depending on the depth of the fur.
(N.B: The planes measure can vary depending on the needs)
Automatic and pneumatic closure and reopening of the upper plate.
Closure’s times, vaporization and suction adjustable through timer.
Machine with a built-in electro aspirator.
Machine planned for the connection to a centralized vapor source.
MOD 15/A
Click for zoom
Pagnini & C. Srl

Electric steam generator according to the laws P.E.D. from lt. 21
Possibility of resistances from: 10 – 12 – 15 – 18 Kw.
Equipped with an electropump and an automatic level regulator
Electric control console according to the law. Insulation IP 65

EXAMPLE OF A CENTRALIZED STEAM SYSTEM FED WITH BOILER EL. MOD. 15/A

(For feeding of irons, vaporizing guns, ironing boards, mannequins, topper etc).

Click for zoom
Pagnini & C. Srl
Click for zoom
Pagnini & C. Srl
Click for zoom
Pagnini & C. Srl
MOD 21
Click for zoom
Pagnini & C. Srl

Electric steam generator to PED lt. 21;
                 Possibility of resistance from 10 - 12 - 15 - 18 Kw;
                 Complete with pump and automatic controller level;
                 Fitted with two el / valve connection irons / ironing boards or guns
                 steaming or tubes for continuous vaporization;

STEAM GENERATORS
with power from 50 to 420 Kg/h.
Click for zoom
Pagnini & C. Srl

Planned for blown air burners for methane, LPG and diesel

ASPIRATING AND HEATED UP RECTANGULAR TABLE
Click for zoom
Pagnini & C. Srl

Aspirating and heated up rectangular table that measures 280x90 cm.
for ironing of sheets and tablecloths. Volts. 380/3f + N + T

(This ironing table can be realized in various measures to meet customers’ needs and it can have an horizontal or  inclined worktop).
AUT. VACUUM IRONING BOARD:

Click for zoom
Pagnini & C. Srl

With this type of machine , particularly indicated for laundries and clothes factories it's possible to iron every kind of clothes. The strong vacuum for a quickly drying of clothes and a complete line of accessories can increase the productivity.
Universal, vacuum and electrically heated ironing ing board.
Complete of:
Surface dimensions cm 120x38x26.
Electric automatic boiler lt 5 - Kwatt 4.5
One iron
Two solenoide valves
Iron support on the back side
Arrangment for lux support
Vacuum regulation
Suctioning pedals
Arranged for the connection with ironing arms.

STEAM GENERATOR LT. 7:

Click for zoom
Pagnini & C. Srl

This steam generator has the same shape of mod. 172 but boiler of 7 lt inside. It' scomplete of two irons and it's ideal for confections, shirt factories and tailor's. Easy to use and to install it allows to iron for several hours thanks to the inside electropump that supplyies the boiler of water.Furthermore the pressure inside the boiler is higher ( 4,5 bar ) and it supplyies a dry steam with higher temperature.The machine can be connected to the water plant or to a tank.
Steam generator with two irons.
Complete of:
Lt 7 automatic boiler
Float control level
Two irons complete of electric cable and steam hose
Electropump for water supply
Two rubber mats
Two cable support
One cock for boiler discharge

STEAMING FORMER:

Click for zoom
Pagnini & C. Srl

This former is the ideal machine for the iron of every kind of leather clothes and confection. It is able to iron, in a fast and automatic way jackets, coats, leather jakets, shearling, raincoats, women clothes, shirts, dressing-gown,bath-robe and so on.
The working cyles are completely automatic, two pneumatic pliers assure a perfect tension of the sleeves and of the two timers for air and steam .
Thanks to its easy working and to the few operations to do the machine can be used by unskilled staff too. The iron is made by a steam jet that made the item becomes soft and by a hot air jet that made it perfectly ironed.
The working cycles can be easly regualted by a timer in accordance with the various clothes to iron. The bust of the former can be regulated 360° making its use easy.We advice to support these machines with ironing tables or presses for the final touches.
The bust can be interchanged on demand to allow the iron of children clothes or skirts.
Automatic steaming former prearranged for the connection to pliers.
Complete of :
Lt 7 automatic boiler with float control level
Electropump for water supply
Vaporizing timer
Air blowing timer
Battery for air overheating
Battery for steam overheating

RECTANGULAR DESK:

Click for zoom
Pagnini & C. Srl

Rectangular ironing board, vacuum and heated electrically
solenoid valve for the steam supply
water pump
elettroferro professional

Steam generator from lt.1,5:

Click for zoom
Pagnini & C. Srl

boiler with copper resistance and dry outside.
Power supply: 230 V - 50 Hz
Boiler Capacity: 1,5 lt.
Boiler power: 900 W
Pressure: 2,8 BAR
Elettroferro Power: 850 W
Weight: 7 Kg
Machine dimensions: 235 x 365 x 220h mm.

Steam generator lt. 2:

Click for zoom
Pagnini & C. Srl

boiler with copper resistance and dry outside.
Power supply: 230 V - 50 Hz
Boiler capacity: 2 lt.
Boiler power: 900 W
Operating Pressure: 2,8 BAR
Elettroferro Power: 850 W
Weight: 8 Kg
Machine dimensions: 235 x 365 x 240 mm h.

Steam generator lt. 3.5:

Click for zoom
Pagnini & C. Srl

boiler with copper resistance and dry outside.
Power: 230 - 50 Hz
Boiler Capacity: 3,5 lt.
Boiler power: 1300 W
Operating Pressure: 2,8 BAR
Gauge: 0-6 BAR
Weight: 9.5 Kg
Machine Size: 410 x 270 x 350h mm.

Steam generator lt. 5 :

Click for zoom
Pagnini & C. Srl

boiler with copper resistance and dry outside.
Power: 230 - 50 Hz
Boiler capacity: 5 lt.
Boiler power: 900 W +1300
Operating Pressure: 2,8 BAR
Gauge: 0-6 BAR
Weight: 12 Kg
Machine Size: 260 x 450 x 405h mm.

Ironing board and vacuum heated:

Click for zoom
Pagnini & C. Srl

Ironing board and vacuum heated, with adjustable temperature thermostat through the plan. Shelf to house a steam generator. Attachment braccietto stiramaniche aspiran. Work Plan reclosable.
Power supply: 230V - 50 Hz
Table Power: 700 W
Motor suction power: 150 W
Weight: 16 Kg
Plan size: 1111 x 400 mm.

Press for termopress LTS 12:

Click for zoom
Pagnini & C. Srl

LTS 12 is the smallest manual presses in our range. Because of their strong pressure, concentrated into small plates, they are particularly suitable for transferring smaller motifs onto t-shirts, sweatshirts, trousers, bags and many more.
The freestanding supporting plate of each press allows you to mount textiles easily in one ply, only the fabric part to be printed will lie on the supporting plate
Thus, prints previously applied onto the textile will be spared and creases impairing the printing result (usually caused by two plies) can be avoided.
During the transfer process, the smooth-running pressure arm will automatically click into place, so that you don’t have to hold it down all the time. The pressure can be continuously adjusted by hand. To release the pressure arm, just lift it approximately 2 cm. Then the inbuilt spring mechanism will hoist the heating plate automatically and you don’t have to use any strength to raise it.
The clearly arranged digital display allows you to comfortably set and control transfer time and operating temperature. Thanks to the electronic heat control, an even and constant operating temperature is guaranteed.
For indicating the release time, the digital temperature control is furnished with an audible and a visual signal. In this way the release time becomes clearly evident, making your work even easier. At request, the LTS 12 can be furnished with two heating plates (top and bottom). These model is called LTS 12 S and have been particularly developed for textile applications using Swarovski stones or the like.

Specifications:
Print Area: 13 x 12 cm
digital timer: 0-99 seconds
temperature: 0-299 ° C
absorption: 250 W
Power: 220 - 240 V
Weight: 13 Kg

Press for termopress LTS 14:

Click for zoom
Pagnini & C. Srl

Hand operated LTS 14 is a special cap press, very practical for this use and easy to operate. The caps can be fast and easily mounted, clamped and printed.
During the transfer process, the smooth-running pressure arm will automatically click into place, so that you don’t have to hold it down all the time.
The pressure can be continuously adjusted by hand. To release the pressure arm, just lift it approximately 2 cm. Then the inbuilt spring mechanism will hoist the heating plate automatically and you don’t have to use any strength to raise it.
The clearly arranged digital display allows you to comfortably set and control transfer time and operating temperature. Thanks to the high quality heating technology, not only a fast heating-up and an even and constant operating temperature are guaranteed, but also a long endurance of the heating elements.
For indicating the release time, the digital temperature control is furnished with an audible and a visual signal. In this way the release time becomes clearly evident, making your work even easier.
LTS 14 allows to move the pressure shoe with the supporting plate back and forth. In this way it is possible to compensate different forehead heights of caps and to guarantee a perfect hold of the upper heating plate on the bottom supporting plate.

Specifications:
Print Area: 11 x 9 cm
digital timer: 0-99 seconds
temperature: 0-299 ° C
absorption: 250 W
Power: 220 - 240 V
Weight: 20 Kg

Press for termopress LTS 38:

Click for zoom
Pagnini & C. Srl

LTS 38 is particularly suitable for transferring onto t-shirts, sweatshirts or sports wear. The transfer area of 38 x 45 cm allows you to print formats up to DIN A3 in a fast and professional way.
Thanks to its modular design, you need only one press to print shirts, jackets, bags, leynard keychains: Various supporting plates can be conveniently and easily interchanged within 2 minutes.
The freestanding supporting plate of each press allows you to mount textiles easily in one ply, only the fabric part to be printed will lie on the supporting plate.
Thus, prints previously applied onto the textile will be spared and creases impairing the printing result (usually caused by two plies) can be avoided.
The clearly arranged digital display allows you to comfortably set and control transfer time and operating temperature. Thanks to the high quality heating technology, not only a fast heating-up and an even and constant operating temperature are guaranteed, but also a long endurance of the heating elements.
For indicating the release time, the digital temperature control is furnished with an audible and a visual signal. In this way the release time becomes clearly evident, making your work even easier.
Additional to the original supporting plate, other supporting plates in all kinds of sizes are available. Popular sizes are our breast pocket format and a longish format for transferring onto sleeves and trouser legs.Furthermore, we will be happy to produce for you any customised size you need.

Specifications:
Print Area: 38 x 45 cm
digital timer: 0-999 seconds
temperature: 0-250 ° C
absorption: 2000 W
Power: 220 - 240 V
Weight: 40 Kg

Press for termopress LTS 150:

Click for zoom
Pagnini & C. Srl

The models of this group are genuine all-rounders. Thanks to their modular design, you need only one press to print shirts, jackets, bags, leynard keychains and even caps: Various supporting plates can be conveniently and easily interchanged within 2 minutes.
The freestanding supporting plate of each press allows you to mount textiles easily in one ply, only the fabric part to be printed will lie on the supporting plate. Thus, prints previously applied onto the textile will be spared and creases impairing the printing result (usually caused by two plies) can be avoided.
During the transfer process, the smooth-running pressure arm will automatically click into place, so that you don’t have to hold it down all the time. To release the pressure arm, just lift it approximately 2 cm.
Then the inbuilt spring mechanism will hoist the heating plate automatically and you don’t have to use any strength to raise it. Pressure can be continuously adjusted by turning an easily accessible set-screw.
For indicating the release time, the digital temperature control is furnished with an audible and a visual signal. In this way the release time becomes clearly evident, making your work even easier.
The clearly arranged digital display allows you to comfortably set and control transfer time and operating temperature. Thanks to the high quality heating technology, not only a fast heating-up and an even and constant operating temperature are guaranteed, but also a long endurance of the heating elements.
Additional to the original supporting plate, other supporting plates in all kinds of sizes are available. Popular sizes are our breast pocket format and a longish format for transferring onto sleeves and trouser legs.
Furthermore, we will be happy to produce for you any customised size you need.
All cap sets allow you to move the pressure shoe with the supporting plate back and forth. This vital advantage makes it possible to overcome the problem of various forehead heights of caps: As you can move the shoe, it is always possible to position the transfer optimally under the bent heating plate.

Specifications:
Print Area: 50 x 40 cm
digital timer: 0-999 seconds
temperature: 0-250 ° C
absorption: 2000 W
Power: 220 - 240 V
Weight: 50 Kg

Press for termopress LTS 550:

Click for zoom
Pagnini & C. Srl

LTS 550 is a perfect heat transfer press for manufacturers of sports goods, team suppliers and manufacturers of workwear garments.
The pneumatic model LTS 550 provides a swivelling heating plate (40 x 50 cm) and has been particularly developed for digital printing and sublimation techniques. Compared to hand operated presses, this model offers vital advantages.
Its most striking characteristics are a particularly high contact pressure (2.5–8 bar) and – as it is an automatic press – its ease of use. No weary arm when producing high numbers!
Thanks to its modular design, you need only one press to print shirts, jackets, bags, leynard keychains and even caps: Various supporting plates can be conveniently and easily interchanged.
The freestanding supporting plate of each press allows you to mount textiles easily in one ply, only the fabric part to be printed will lie on the supporting plate.
The clearly arranged digital display allows you to comfortably set and control transfer time and operating temperature. Thanks to the high quality heating technology, not only a fast heating-up and an even and constant operating temperature are guaranteed, but also a long endurance of the heating elements.
Additional to the original supporting plate, other supporting plates in all kinds of sizes are available. Popular sizes are our breast pocket format and a longish format for transferring onto sleeves and trouser legs (see pictures).
Furthermore, we will be happy to produce for you any customised size you need. Also for pneumatic presses, special cap sets are available.
The unit is also available with two supporting plates (Mod. LTS 750). LTS 750 PA additionally offers an automatic side swivel.
This press will be optimally supported in its performance by our large volume compressors.

Specifications:
Print Area: 40 x 50 cm
digital timer: 0-999 seconds
temperature: 0-250 ° C
absorption: 2 Kw / h
Power: 220 - 240 V
pressure: 1,2 - 1,5 Km / cm picture (2-8 BAR)
Weight: 75 Kg.

Press for termopress LTS 750:

Click for zoom
Pagnini & C. Srl

LTS 750 is a perfect heat transfer press for manufacturers of sports goods, team suppliers and manufacturers of workwear garments.
The pneumatic model LTS 750 provides a swivelling heating plate (40 x 50 cm) and two supporting plates. It has been particularly developed for digital printing and sublimation techniques. Compared to hand operated presses, this model offers vital advantages.
Its most striking characteristics are a particularly high contact pressure (2.5–8 bar) and – as it is an automatic press – its ease of use. No weary arm when producing high numbers! Its double supporting plate allows you to work fast. While one textile is being printed you can already prepare the next one on the other plate.
Thanks to its modular design, you need only one press to print shirts, jackets, bags, leynard keychains and even caps: Various supporting plates can be conveniently and easily interchanged.
The freestanding supporting plate of each press allows you to mount textiles easily in one ply, only the fabric part to be printed will lie on the supporting plate.
The clearly arranged digital display allows you to comfortably set and control transfer time and operating temperature. Thanks to the high quality heating technology, not only a fast heating-up and an even and constant operating temperature are guaranteed, but also a long endurance of the heating elements.
Additional to the original supporting plate, other supporting plates in all kinds of sizes are available. Popular sizes are our breast pocket format and a longish format for transferring onto sleeves and trouser legs (see pictures).
Furthermore, we will be happy to produce for you any customised size you need.
Also for pneumatic presses, special cap sets are available.
The unit is also available with one supporting plate (Mod. LTS 550). Our model LTS 750 PA additionally offers an automatic side swivel. This press will be optimally supported in its performance by our large volume compressors.

Specifications:
Print Area: 40 x 50 cm
digital timer: 0-999 seconds
temperature: 0-250 ° C
absorption: 2 Kw / h
Power: 220 V
pressure: 1,2 - 1,5 Km / cm picture (2-8 BAR)
weight: 100 Kg
